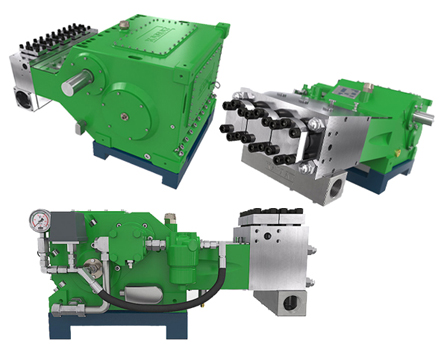

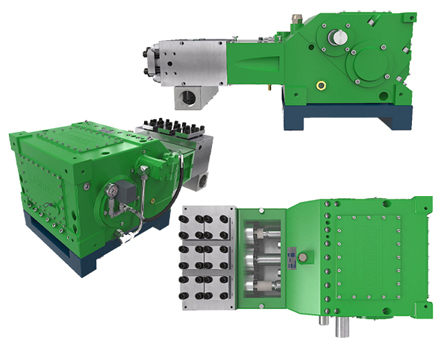

KAMAT plunger pumps with integrated transmissions, are the heart of any KAMAT high pressure system. With minimum space requirements it ensures continuous high pressure and maximum reliability. While achieving efficiency of over 90 percent, energy is utilised to the fullest.
Below you can find a list of KAMAT plunger pumps with technical specifications:
| Type | Flow max. l/min |
Pressure max. bar |
Power max. kw |
Weight Kg |
| K 100 A | 6,8 | 2,000 | 15 | 25 |
| K 4500 | 232 | 2,100 | 45 | 195 |
| K 8000 – 3G | 283 | 2,950 | 75 | 250 |
| K 9000 – 3G | 283 | 3,100 | 90 | 255 |
| K 10000 – 3G | 449 | 3,500 | 130 | 440 |
| K 11000 – 3G | 454 | 2,760 | 110 | 425 |
| K 13000 – 3G | 496 | 3,000 | 130 | 440 |
| K 18000 – 3G | 522 | 3,500 | 180 | 440 |
| K 20000 – 3G | 957 | 2,800 | 200 | 940 |
| K 25000 – 3G | 1148 | 3,200 | 250 | 965 |
| K 35000 – 3G | 1310 | 3,500 | 350 | 1360 |
| K 40000 – 3G | 1310 | 3,500 | 400 | 1360 |
| K 50000 – 5G | 1913 | 3,500 | 530 | 2200 |
| K 80000 – 3G | 3482 | 3,500 | 800 | 3650 |
